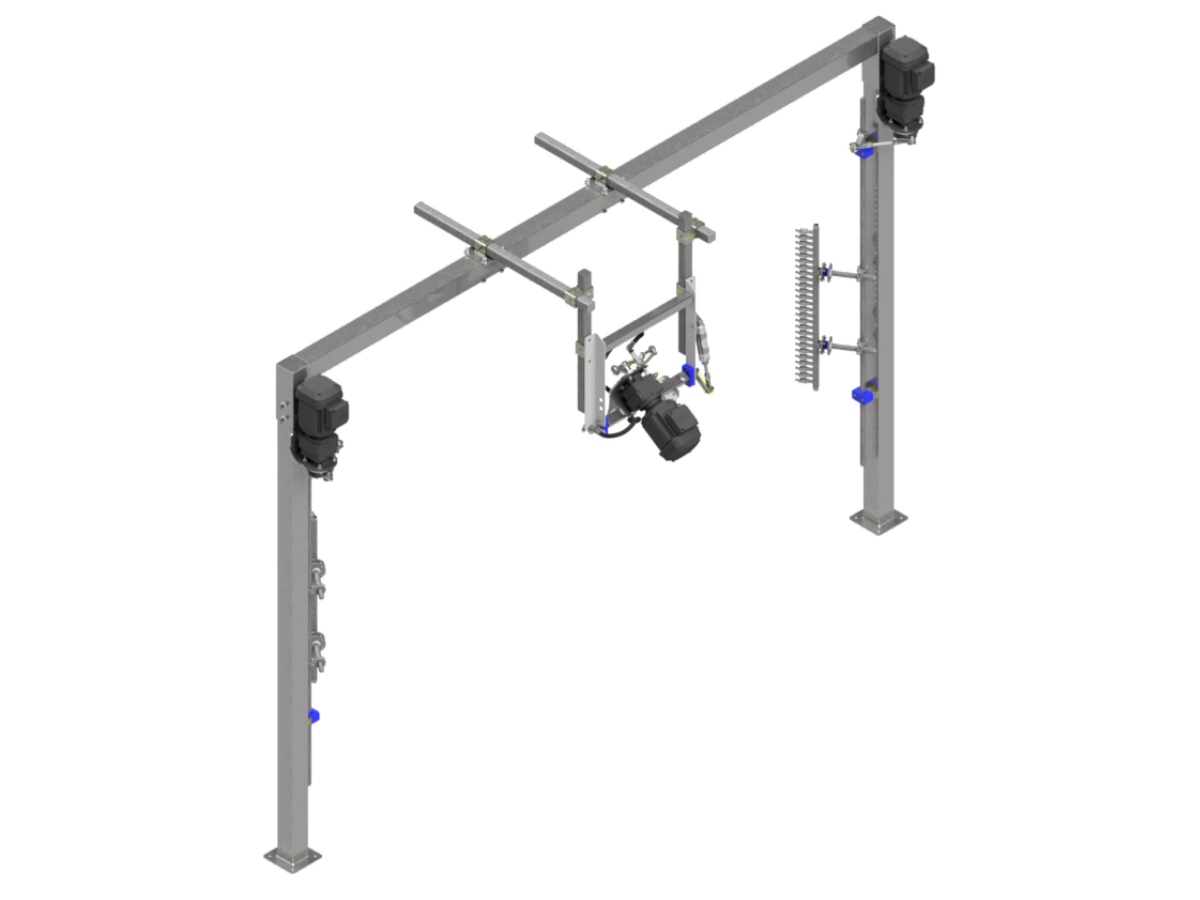

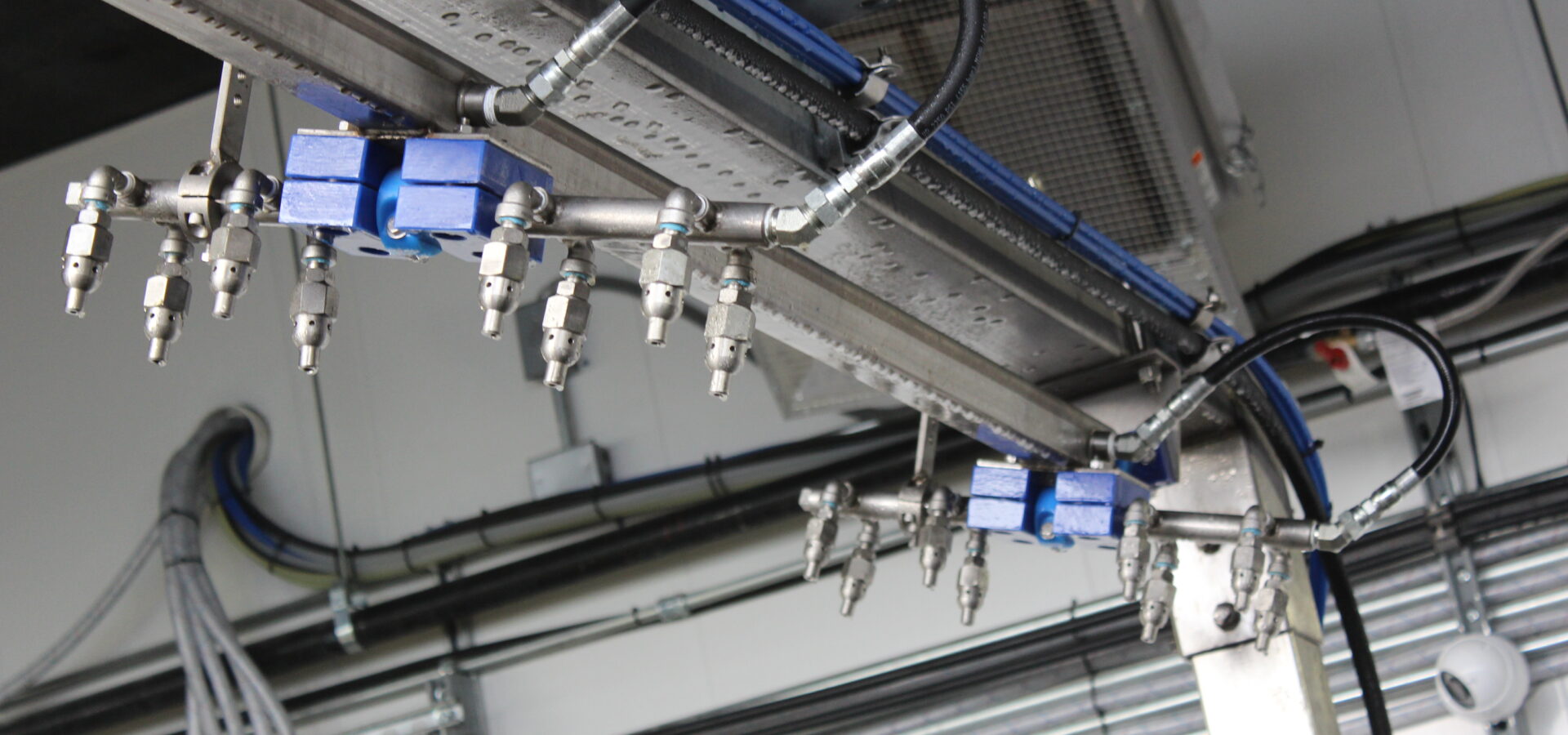

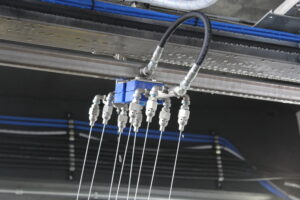

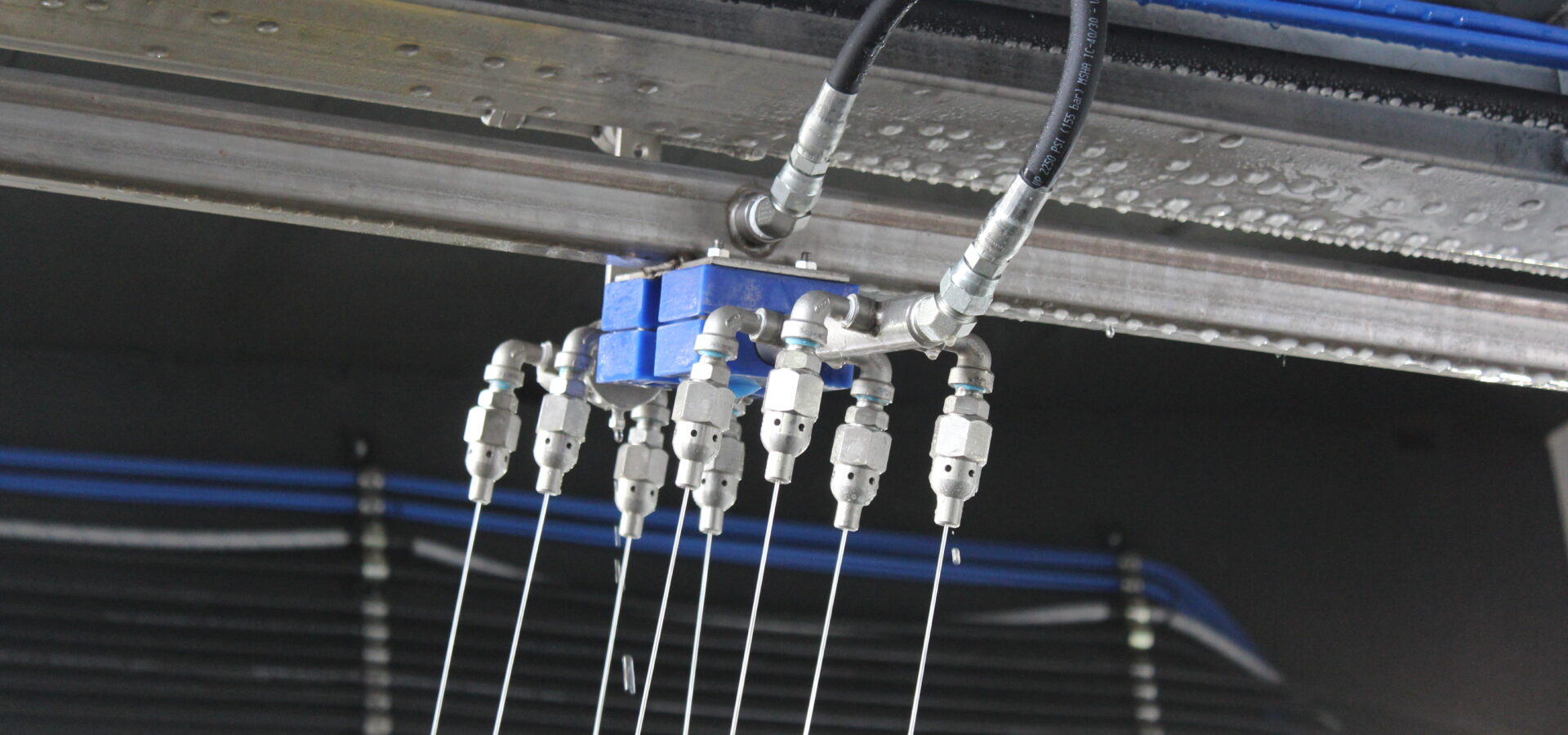

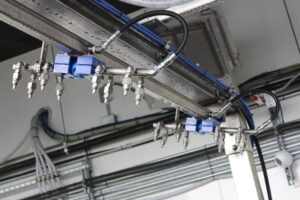

Pivoting Spray Arch

Reaching hard-to-clean vehicle contours, especially flat front grills and vertical rear tailgates, requires targeted water force that static arches simply cannot deliver. The AVW pivoting spray arch is engineered to articulate dynamically as vehicles pass through, aiming high-pressure spray directly at front and rear surfaces for complete, uniform coverage.

By combining targeted motion with high-volume spray capabilities, this essential tunnel car wash equipment eliminates stubborn bug residue, road film, and dirt buildup that traditional stationary manifolds miss.

Dynamic Coverage & Low-Maintenance Engineering

Operating seamlessly as both a primary high pressure car wash arch and an effective high-water-volume prep arch, this system maximizes cleaning efficiency across every pass. Designed with an advanced bearingless mechanism, this pivoting car wash arch dramatically reduces mechanical wear points, ensuring smooth, continuous rotation without the frequent downtime associated with traditional greased bearings or complex pivot joints.

Built entirely from industrial-grade stainless steel to resist harsh tunnel moisture and chemicals, the unit features a generous 120″ width clearance and 96″ adjustable height to accommodate everything from compact sedans to oversized commercial trucks.

Equipment details

Specs

Videos

Downloads

Specification / Parameter	Details & Values
Manufacturer	AVW Equipment Company
Equipment Type	Pivoting Spray Arch / High-Volume Prep Arch
Frame Material	Heavy-Duty Stainless Steel Construction
Drive System	Bearingless Design (Low-Maintenance Mechanical Motion)
Clearance Width	120 Inches (Tunnel Center Line Span)
Clearance Height	96 Inches (Adjustable Frame Structure)
Spray Motion	Dynamic Pivoting Movement (Front Grill & Rear Vehicle Target)
Primary Application	Prep Arching, High-Pressure Rinsing, and Full Vehicle Coverage

Currently, there are no documents for this equipment
