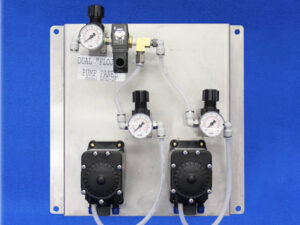

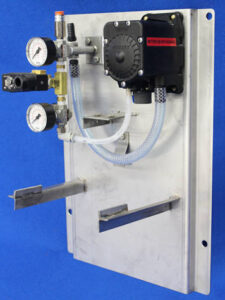

Delivering exact chemical dilution and delivery across every wash arch is vital for maintaining consistent cleaning performance while managing fluid utility costs. The AVW chemical pumping station serves as a centralized, high-efficiency dispensing hub engineered to control fluid delivery across your entire backroom environment.
Operating as a heavy-duty car wash chemical pump system, this panel injects concentrated solutions directly into the primary water line, eliminating the footprint and maintenance associated with bulky pre-mix holding tanks. Built on a corrosion-resistant panel weldment, it provides operators with reliable control over fluid consumption and wash quality.
Designed to accommodate diverse chemical chemistries and delivery methods, this chemical injection system car wash setup is available in both foaming and non-foaming configurations. Each assembly comes equipped with an integrated water pressure regulator, clear pressure gauges, and inline fluid strainers to ensure stable line pressure and protect internal metering components.
Driven by high-precision pump controls, including Dosatron, Blue-White, or DEMA dosing options, this space-saving pumping equipment mounts neatly on backroom walls, giving technicians rapid access to fine-tune dilution ratios without disrupting tunnel workflow.
Equipment details
Specs
Videos
Downloads
| Specification / Parameter | Details & Values |
| Manufacturer | AVW Equipment Company, Inc. |
| Series Model | CPS Series (Chemical Pump Panels) |
| Equipment Type | Wall-Mounted Chemical Injection & Metering Panel |
| System Configurations | Type 1 (Non-Foaming) & Type 2 (Foaming) |
| Metering Pump Options | Dosatron (DM14MZ2), Blue-White (Noir Feed Pump), or DEMA MixRite (570CW) |
| Injection Method | Direct Injection into Water Stream (No Premix Storage Tank Needed) |
| Pressure Regulation | 3-Way Water Pressure Regulator (1/4″ – 1/2″ NPT) & Gauge (0-160 PSI) |
| Solenoid Actuation | 1/2″ NPT & 1/4″ NPT Solenoid Valve Assemblies (110-120V / 50-60Hz) |
| Filtration & Plumbing | Inline Strainer Assembly, PVC NPT Fittings, and Reinforced Braided Hose |
| Panel Footprint | Compact Wall-Mount Bracket (15.61″ Width x 15.00″ Height, 4x Ø0.41 Mounting Holes) |
