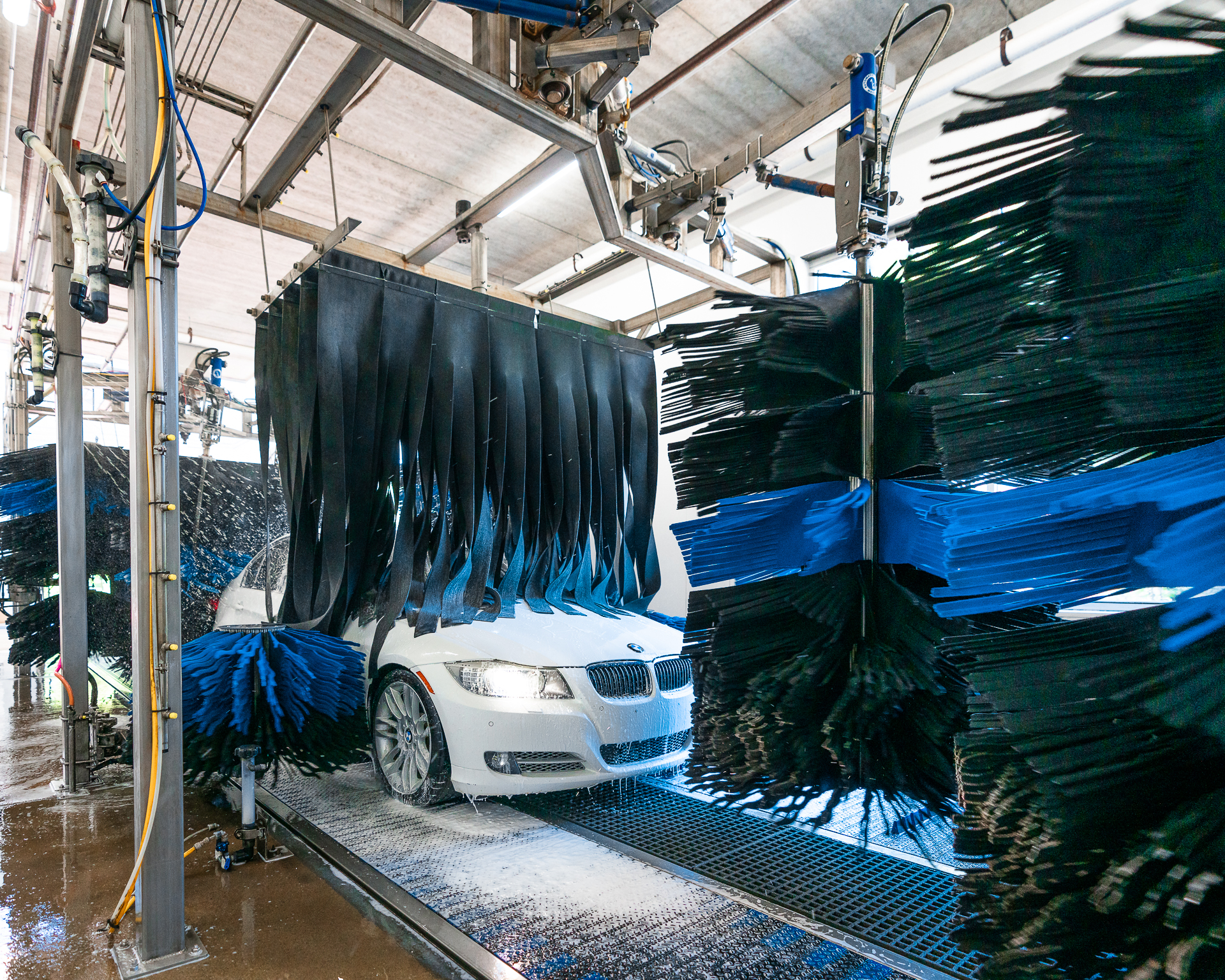

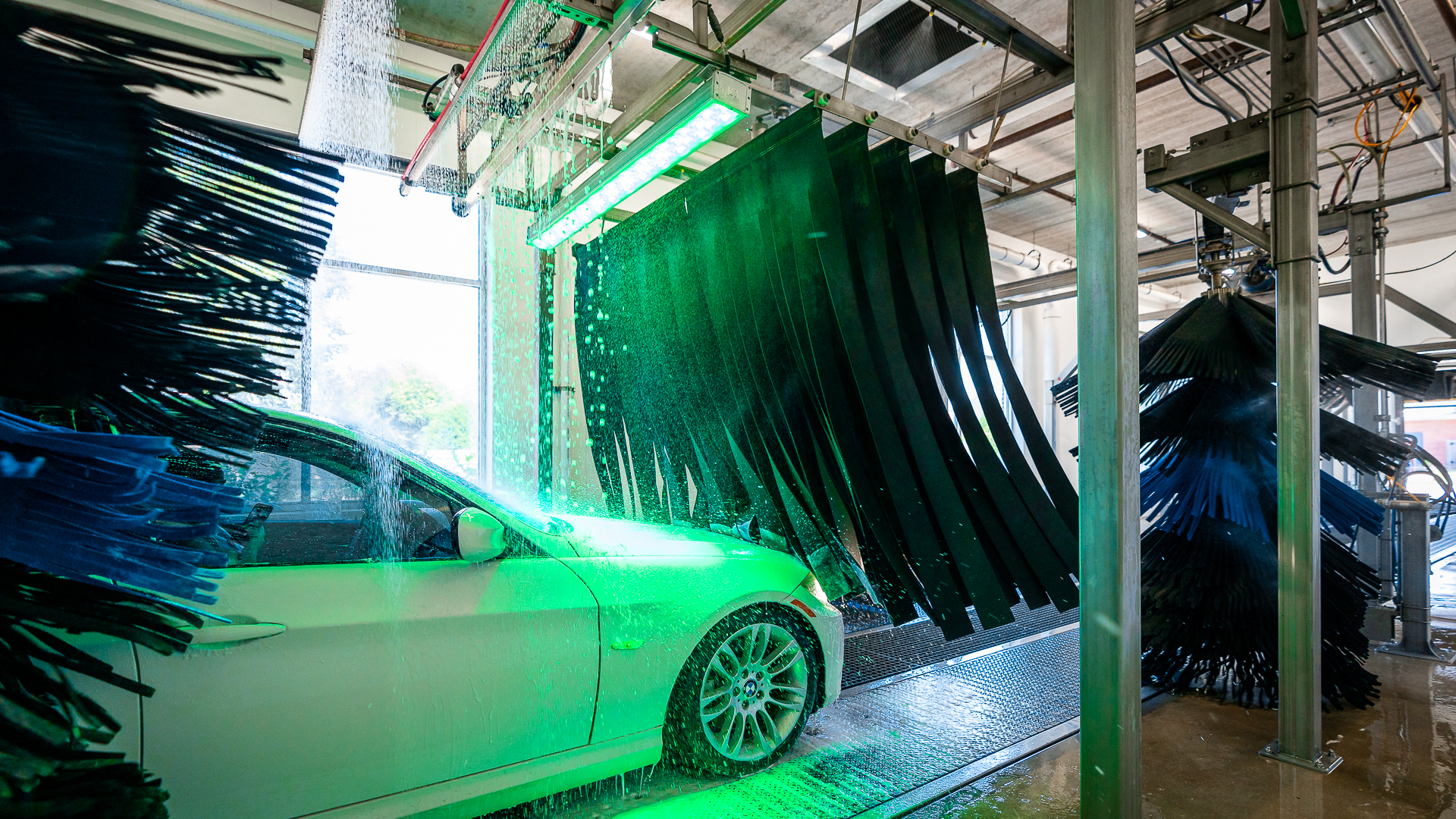

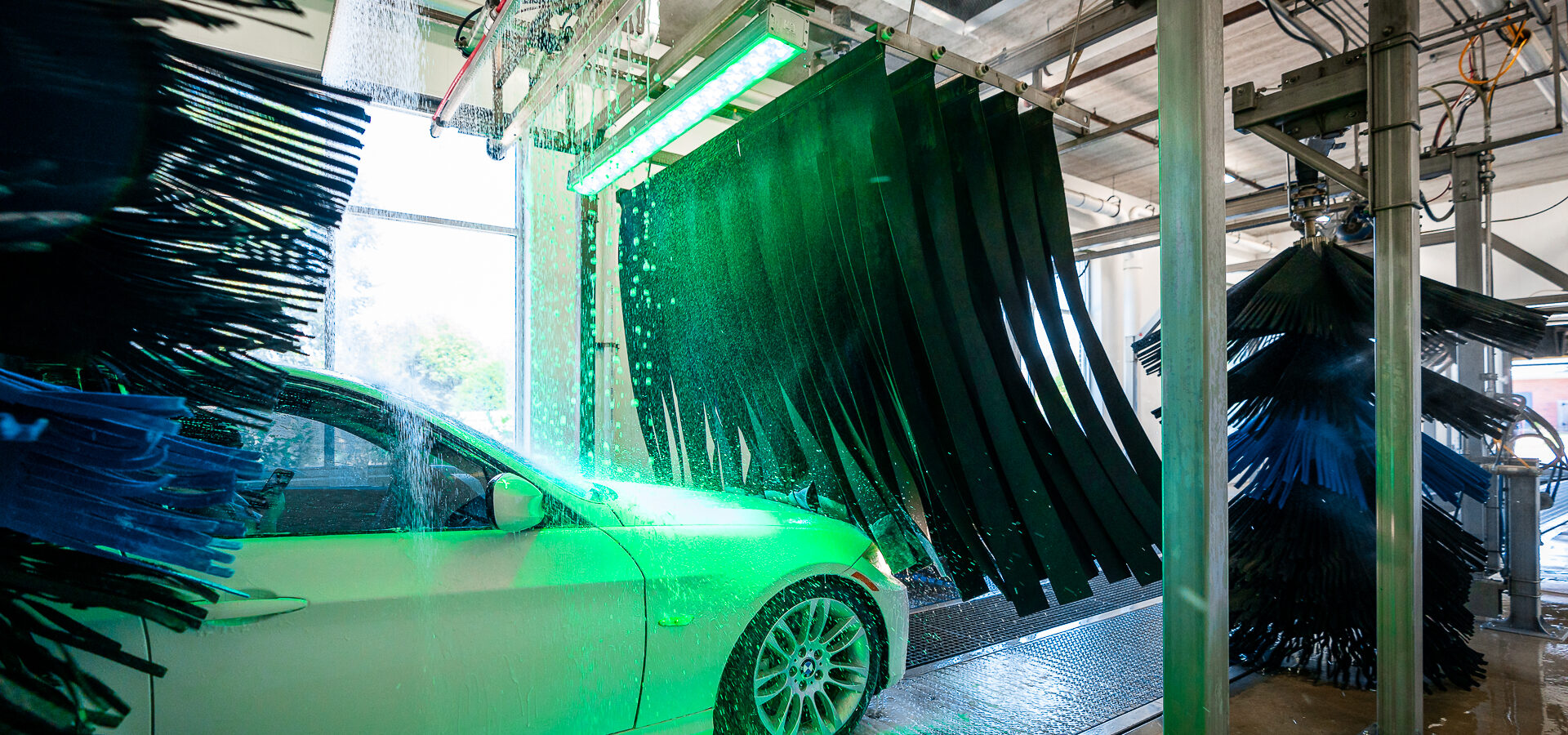

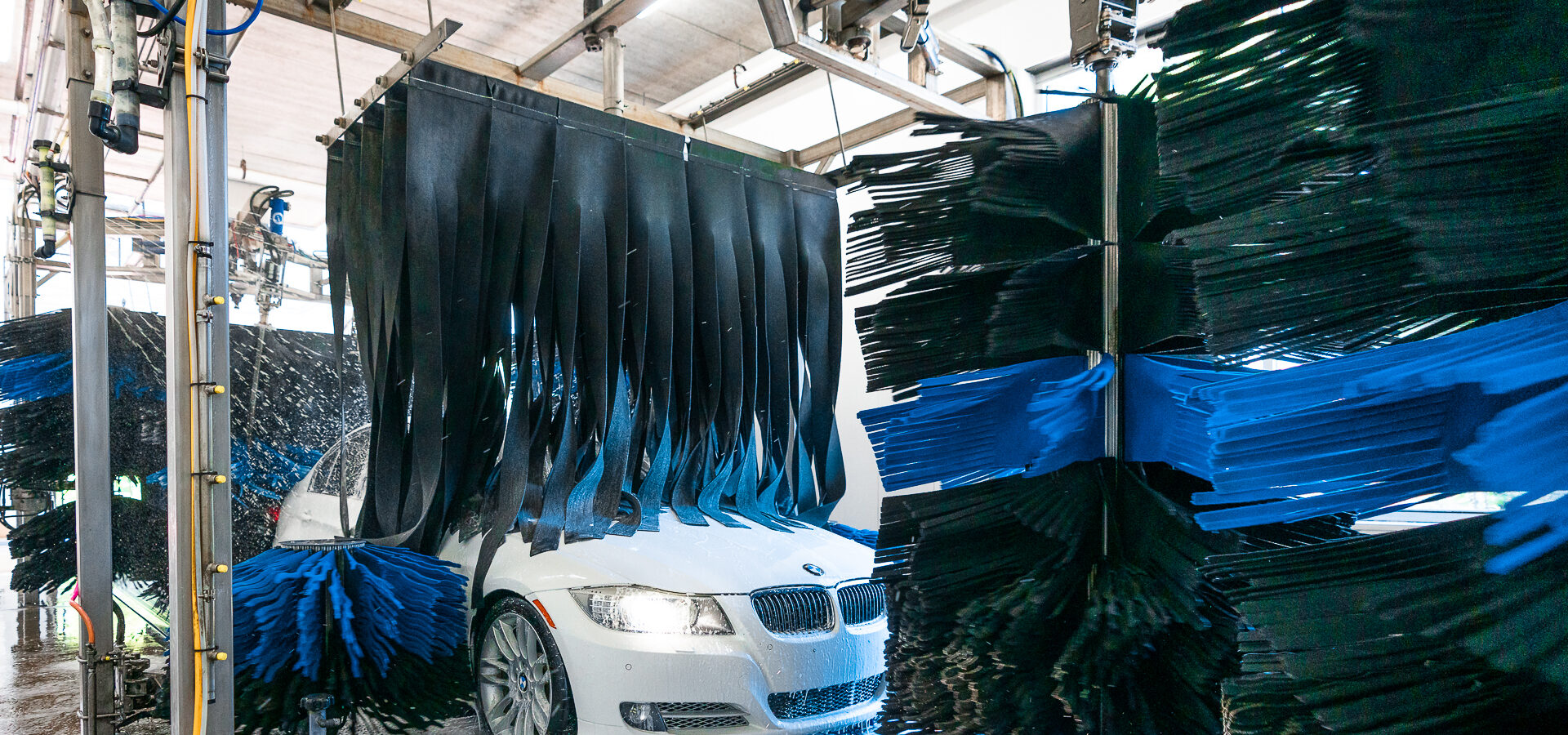

Boost your car wash efficiency and save valuable space with the AVW Z-Wrap & Contour Combo. This innovative module integrates an automatic wrap around car wash brush (Z-Wrap) and a side-mounted contour unit into a single, cohesive framework. It is ideal for maximizing space in shorter tunnels as well as providing a neat, clean appearance in longer car washes. Constructed from heavy grade stainless steel, the AVW Contour unit is designed to rotate in the opposite direction of the Wrap Around brush, delivering constant, consistent pressure to the sides of the vehicle throughout the entire car wash process.
These car wash spinning brushes deliver complete coverage and peak performance through a smart gravity-actuated system, operating smoothly via hydraulic or electric power without the need for complex controls. Whether you require heavy-duty commercial car wash brushes for high-throughput sites or high-efficiency automatic car wash brushes, this tunnel wash combo module provides exceptional durability with minimal maintenance requirements. Featuring stainless steel construction, reliable bearings, and adaptability to varying conveyor speeds, it ensures long-lasting operation and superior wash quality.
Equipment details
Specs
Videos
Downloads
| Parameter / Feature | Specification (Hydraulic / Electric Drive) |
| Manufacturer | AVW Equipment Co. |
| Equipment Type | 2-in-1 Car Wash Spinning Brushes: Z-Wrap & Contour Combo |
| Primary Function | Simultaneous front, rear, and side vehicle cleaning |
| Equipment Width | 144″ – 155″ (365 cm – 393 cm) |
| Equipment Length | 98″ – 201″ (248 cm – 510 cm) |
| Equipment Height | 120″ – 121″ (304 cm – 307 cm) |
| Standard Rotation Speed | 80 RPM |
| Hydraulic Motor | Flow: ~1.67 GPM / Max Pressure: 1100 PSI / Fitting: 1/2″ NPT |
| Electric Motor | Power: 1.5 HP / Voltage: 230/460V / Gearbox Ratio: 22.32:1 |
| Air Cylinder | Operating Pressure: 25–30 PSI / Max Stroke: 3 Inches / Angle: -20° to 20° |
| Construction Material | Heavy Grade Stainless Steel |
| Control System | Gravity-actuated mechanism (no complex controls required) |
| Brush Action | Opposite rotation direction for balanced side pressure |
The AVW Wrap Mitter Combo is ideal for space savings in short tunnels and where a clean appearance is desired in longer tunnels. Simple design is designed to rotate in the reverse direction of the Wrap Around and provide constant pressure to vehicle sides.
The Kaady and AVW Z-Wrap/Mitter/Countour combos are ideal for space savings in short tunnels and where clean appearance is desired in longer car wash tunnels. Both use AVW’s wrap technology, AVW’s circular mitter, and Kaady Contour design. Nothing cleans faster or better!
The AVW Z-Wrap Arounds operate on gravity. No complicated controls. Because of the design it can self adjust to most conveyor speed requirements. Simple design and low maintenance.
