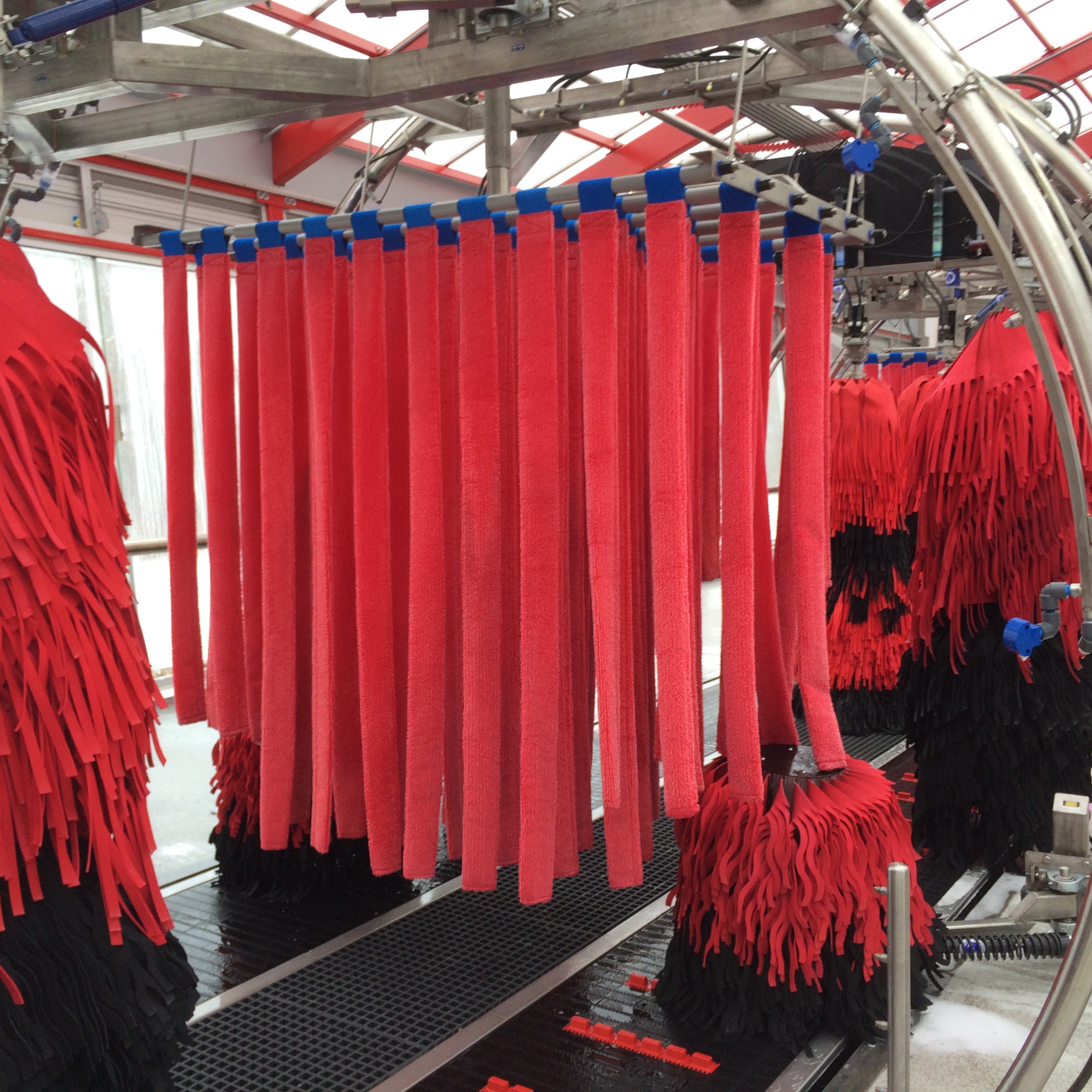

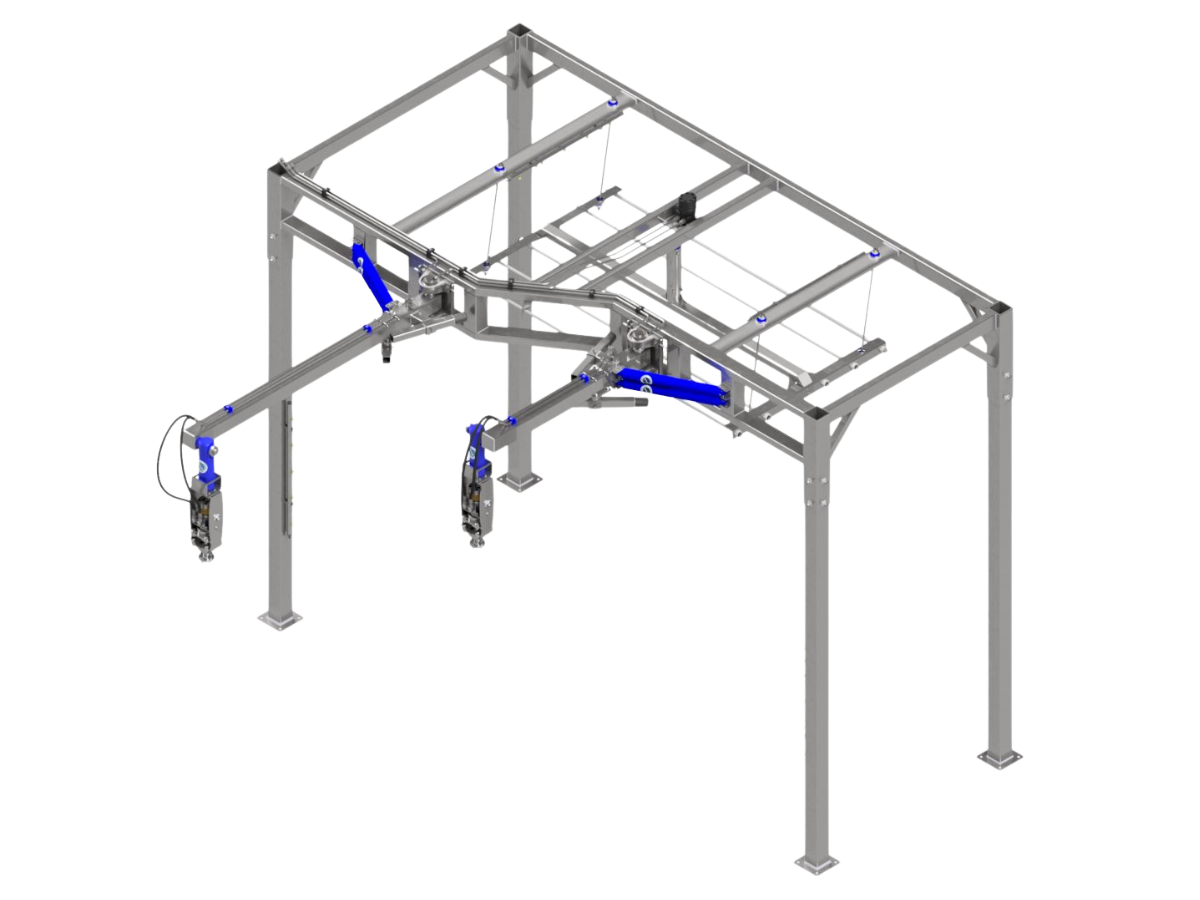

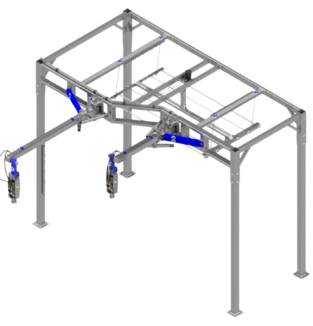

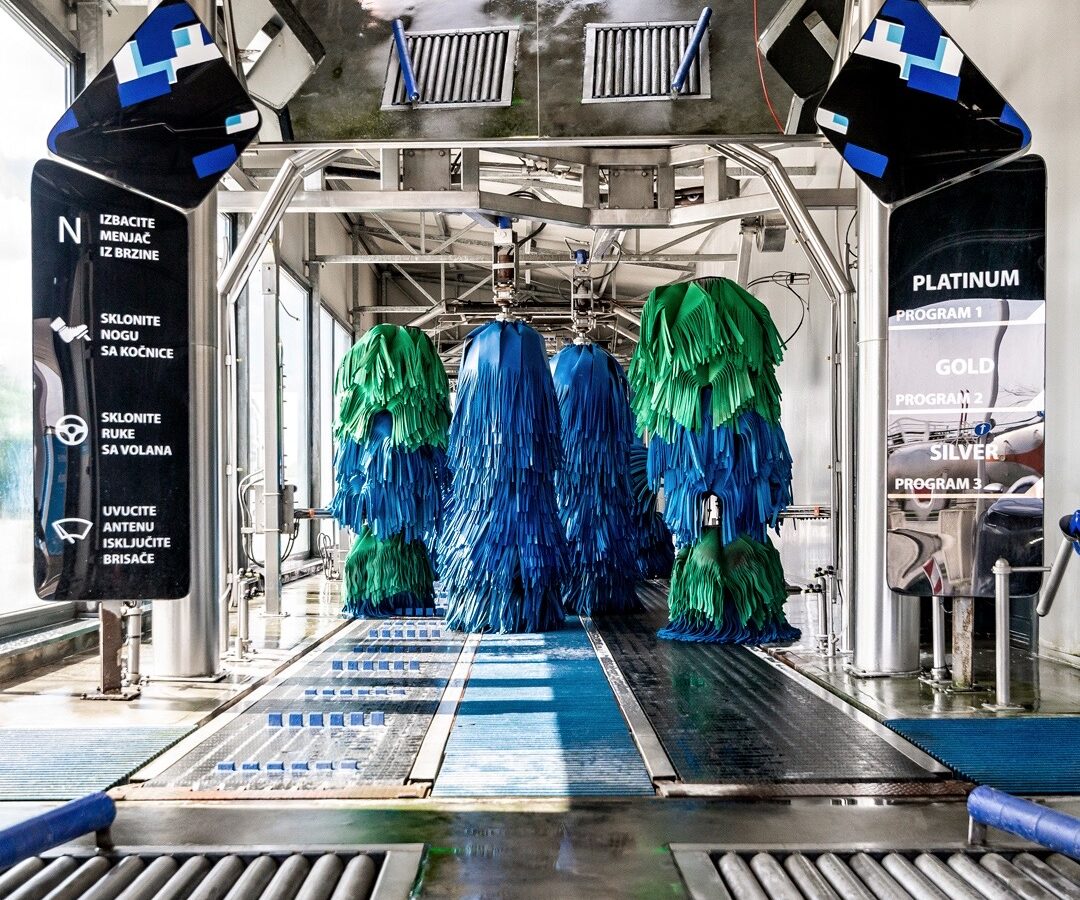

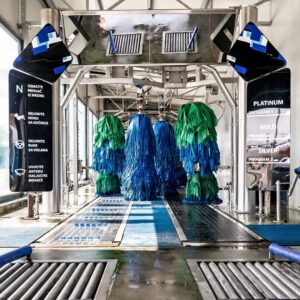

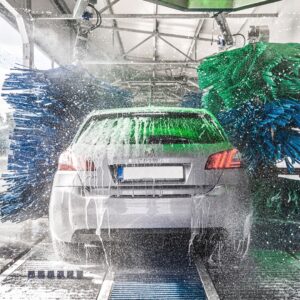

The WC3 Stainless Steel Z-Wrap Mitter Combo integrates two high-performance tunnel car wash brushes, the Z-Wrap and the Mitter Curtain, into a single compact 12-foot footprint to maximize cleaning efficiency and save valuable space in car wash tunnels.
Built from heavy-grade stainless steel, this gravity-operated tunnel car wash brush system requires no complex controls and automatically self-adjusts to varying conveyor speeds. Designed to rotate reverse to standard wrap-arounds, it maintains smooth, constant side pressure across vehicle surfaces, with a van-high brush height tailored specifically for sport utility vehicles and vans.
This combined unit pairs independent hydraulic drives and water manifolds for both the wrap-around brushes and top mitter curtain to ensure thorough vehicle coverage. By utilizing separate fluid systems, each brush assembly operates at optimal hydraulic pressure while delivering precise water flow across all vehicle contour points.
Equipment details
Specs
Videos
Downloads
| Specification / Feature | System Detail |
| Manufacturer | AVW Equipment Co. |
| Model | WC3 Stainless Steel Z-Wrap Mitter Combo |
| Integrated Brush Systems | Z-Wrap Brushes & Basket Mitter Curtain |
| Tunnel Space Savings | Compact 12 ft. overall cleaning footprint |
| Construction Material | Heavy-grade Stainless Steel |
| Wrap Drive Displacement | 11.9 cu. in./rev @ 60 RPM |
| Wrap Water Requirement | 1/2″ NPT Outlet |
| Mitter Drive & Water Specs | 3.6 GPM @ 60 RPM; 1/2″ NPT Water Inlet (3 GPM) |
| Operating Mechanism | Gravity-operated, self-adjusting side-pressure arms |
| Target Vehicle Fit | Van-high brush height for smooth side cleaning on vans and SUVs |
Ideal for space savings in short tunnels and where clean appearance is desired in longer tunnels. The AVW Contour is constructed of heavy grade stainless steel designed to rotate reverse of the Wrap Around and to provide constant pressure to the side of vehicles.

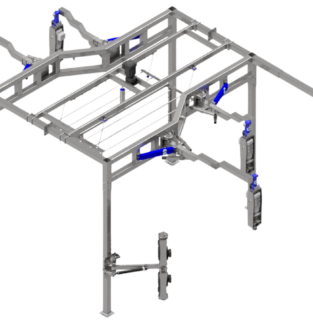

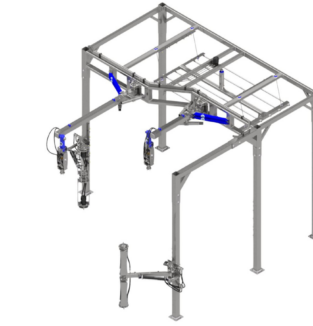

The Kaady and AVW Z-Wrap/Mitter/Countour combos are ideal for space savings in short tunnels and where clean appearance is desired in longer car wash tunnels. Both use AVW’s wrap technology, AVW’s circular mitter, and Kaady Contour design. Nothing cleans faster or better!
The AVW Z-Wrap Arounds operate on gravity. No complicated controls. Because of the design it can self adjust to most conveyor speed requirements. Simple design and low maintenance.
