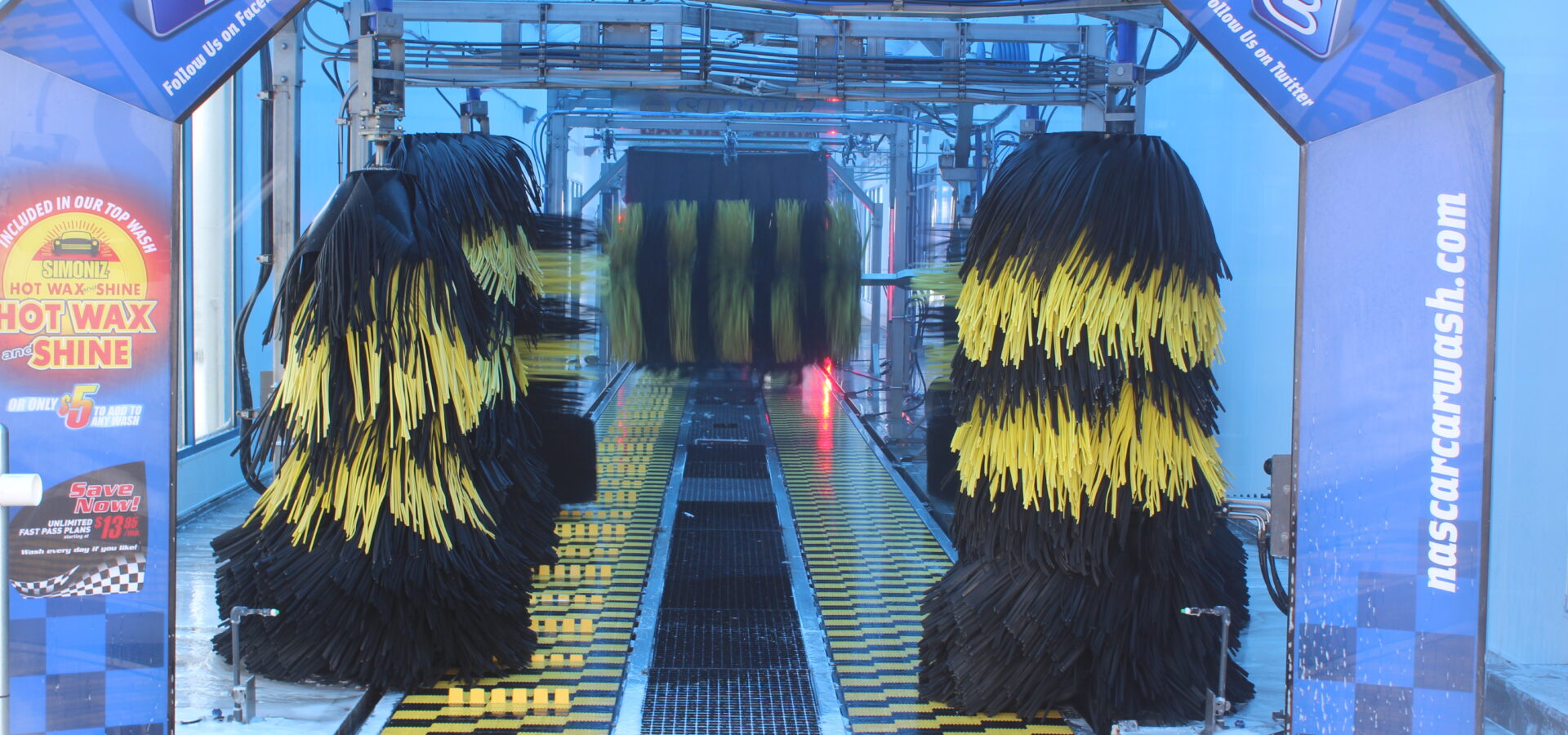

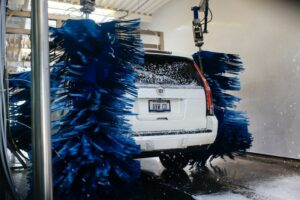

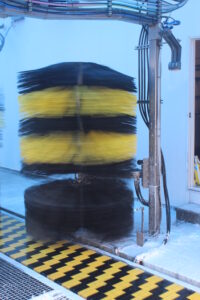

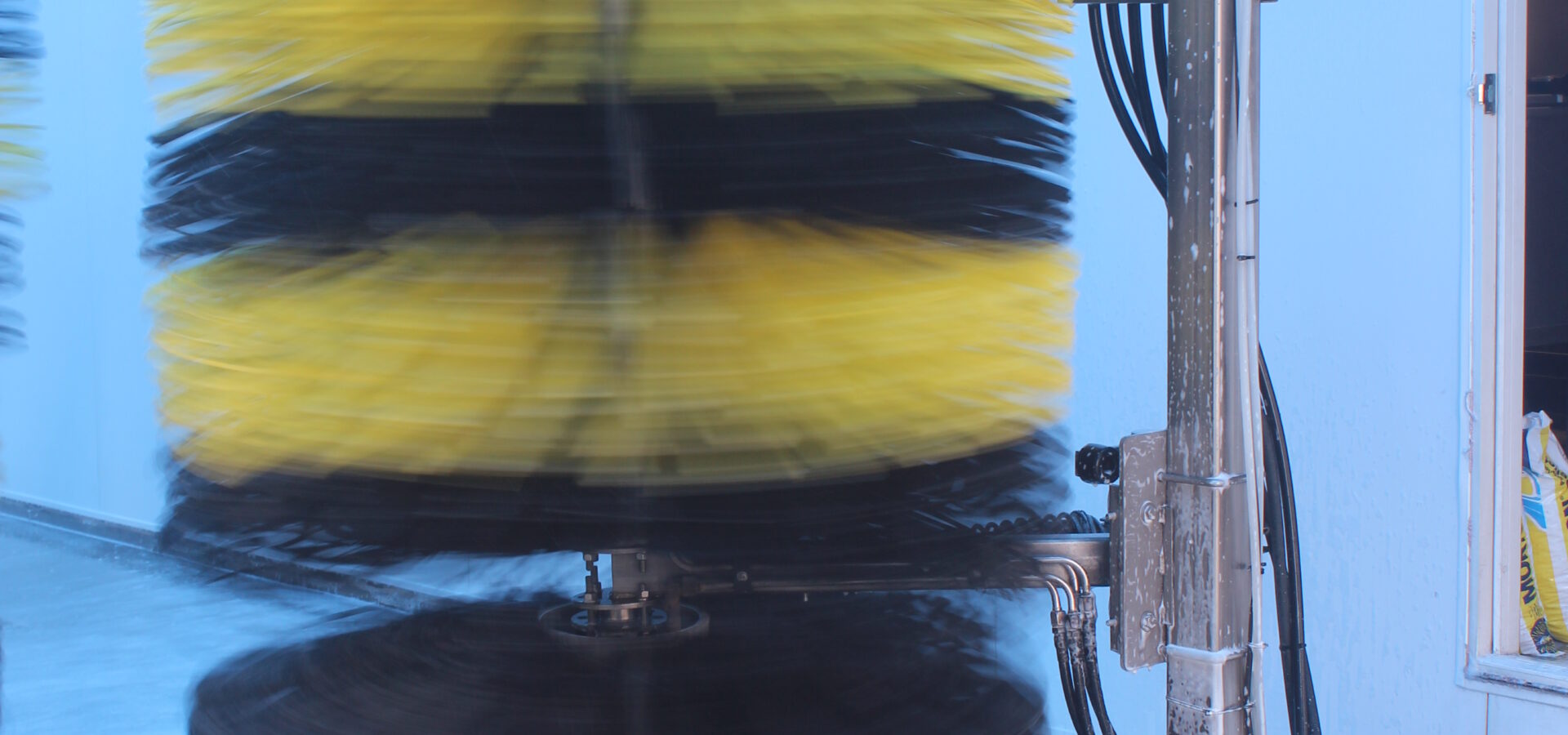

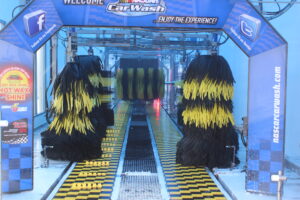

Cleaning front bumpers, side panels, and rear contours reliably requires equipment engineered for continuous contact and smooth movement. The AVW free standing wrap around brush utilizes a gravity-operated mechanism that automatically adjusts to vehicle contours and conveyor speeds without complex electronic controls. Designed with an innovative “Z” style flex arm architecture, this automatic wrap around car wash brush delivers thorough perimeter cleaning while minimizing mechanical complexity and friction-related downtime. Constructed from high-grade stainless steel, the frame resists aggressive wash bay environments and delivers long-term operational durability.
By harnessing natural gravity for arm positioning, this vehicle wrap brush system maintains constant, gentle contact across diverse vehicle profiles without requiring complicated pneumatic or electronic control algorithms. The simple structural design reduces wear points, lowers daily maintenance demands, and accommodates variable tunnel line speeds smoothly. Available with either hydraulic or electric drive configurations, the system incorporates heavy-duty pillow block bearings, shock absorber assemblies, and retract air cylinders to stabilize brush movement through high-volume washing cycles.
Equipment details
Specs
Videos
Downloads
| Specification / Parameter | Details & Values |
| Manufacturer | AVW Equipment Company, Inc. |
| Equipment Type | Free Standing Wrap Around Brush System |
| Frame Material | Heavy-Duty Stainless Steel Weldments |
| Operation Principle | Gravity-Operated / Self-Adjusting to Conveyor Speed |
| Equipment Dimensions (W x L x H) | 144″–155″ W x 98″–201″ L x 120″–121″ H |
| Rotation Speed | 80 RPM (Standard) |
| Hydraulic Drive Requirements | 1.67 GPM Flow Rate @ 1100 PSI Max Pressure (1/2″ NPT Port) |
| Electric Drive Requirements | 1.5 HP Motor, 230/460V, 22.32:1 Gearbox Ratio |
| Air Cylinder Controls | 25–30 PSI Operating Pressure, 3″ Max Stroke |
| Available Arm Configurations | Standard Z-Style, Step-Up Wrap Arms, & Reversed Entrance Facing |
Ideal for space savings in short tunnels and where clean appearance is desired in longer tunnels. The AVW Contour is constructed of heavy grade stainless steel designed to rotate reverse of the Wrap Around and to provide constant pressure to the side of vehicles.
The AVW Wrap Mitter Combo is ideal for space savings in short tunnels and where a clean appearance is desired in longer tunnels. Simple design is designed to rotate in the reverse direction of the Wrap Around and provide constant pressure to vehicle sides.
The Kaady and AVW Z-Wrap/Mitter/Countour combos are ideal for space savings in short tunnels and where clean appearance is desired in longer car wash tunnels. Both use AVW’s wrap technology, AVW’s circular mitter, and Kaady Contour design. Nothing cleans faster or better!
