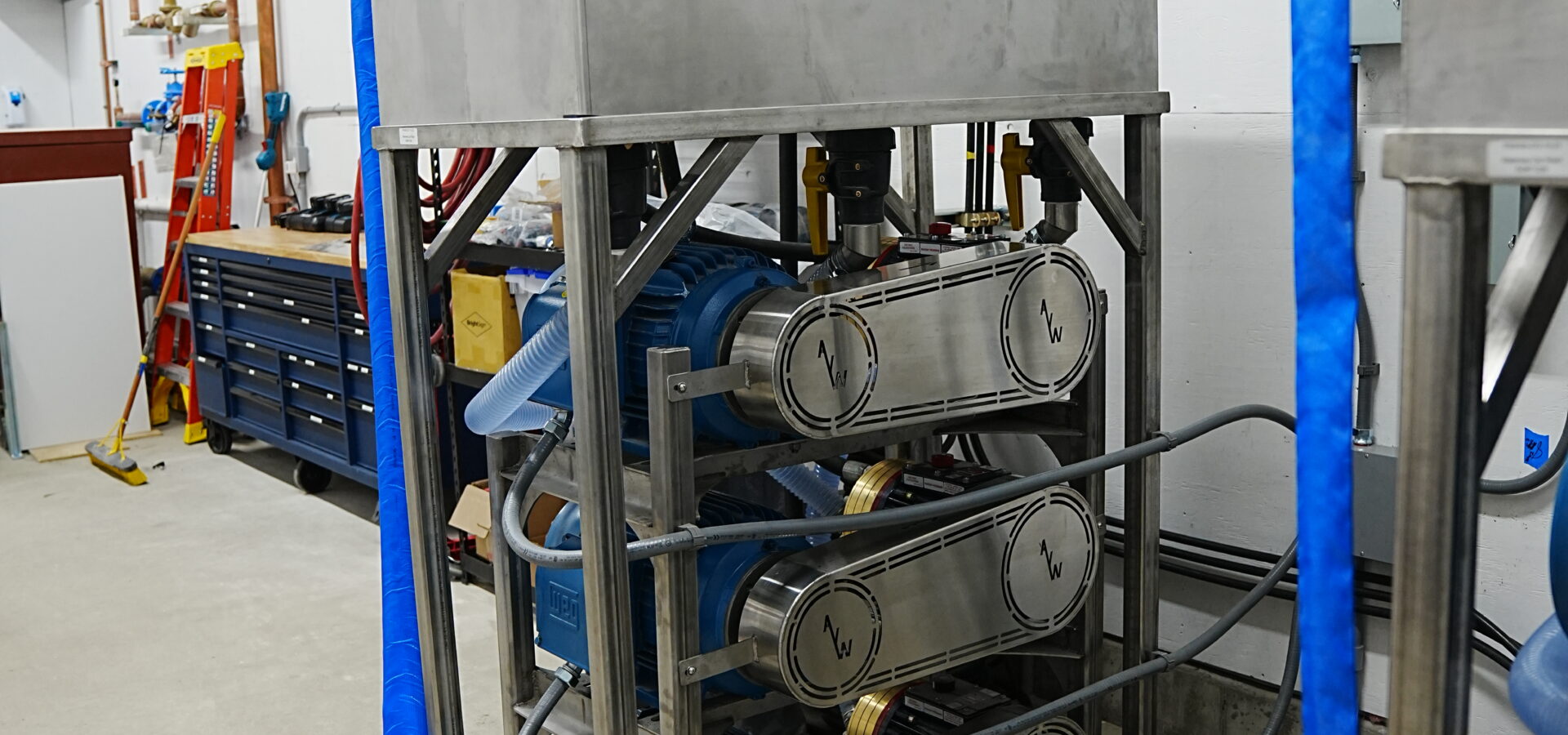

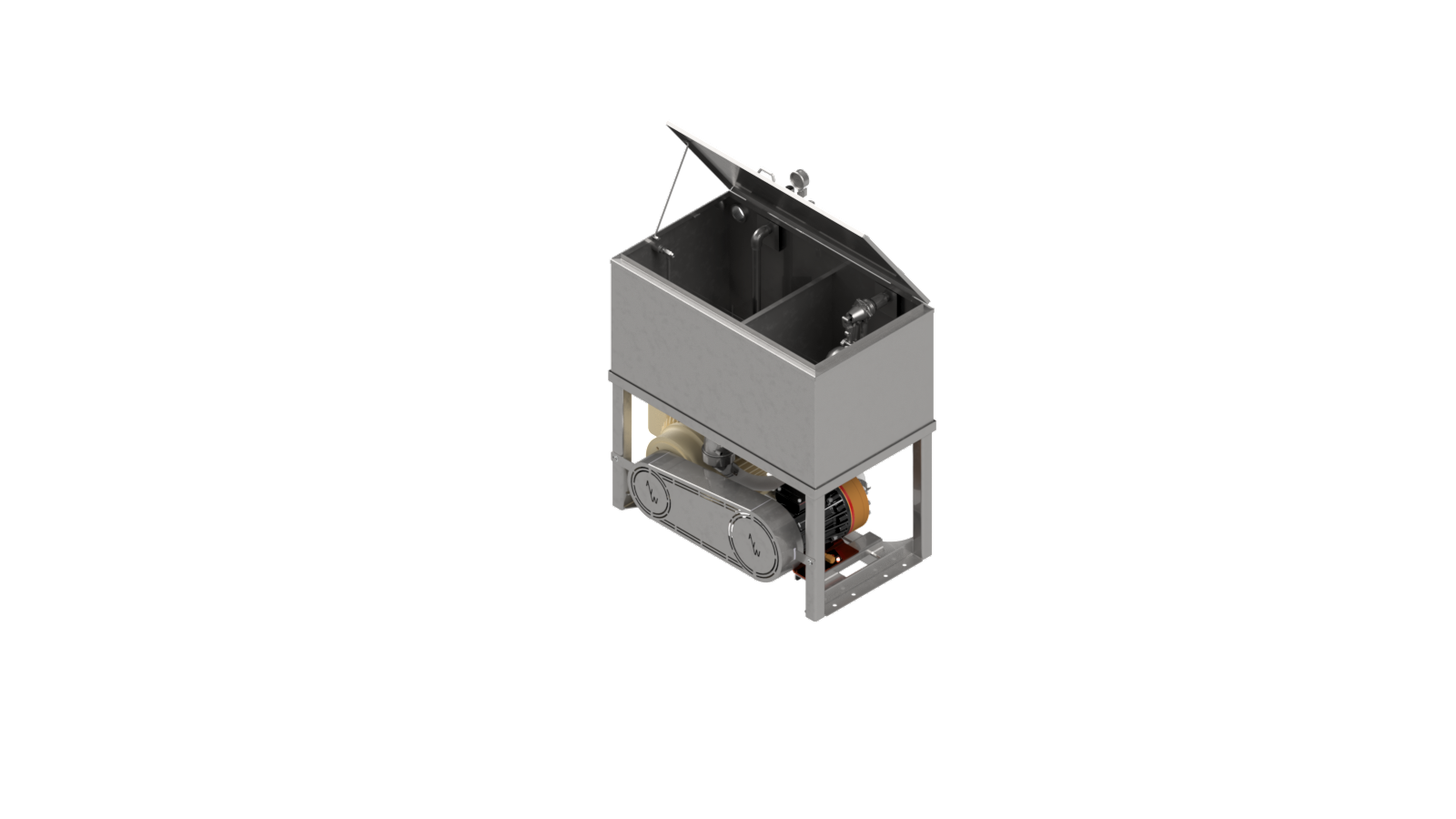

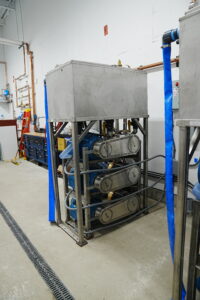

The AVW high pressure pumping station is heavy-duty backroom car wash equipment engineered to supply consistent, high-volume water flow to high-pressure arches, applicators, and rinse manifolds throughout your wash tunnel. Built with durable stainless steel frames and gravity-fed tanks, this essential car wash pump station ensures dependable water delivery for demanding wash applications.
Designed as an integral part of modern pressure pumping equipment, it powers intensive cleaning processes that strip away tough road grime and dirt, making high pressure pumping a seamless part of every wash cycle.
Designed specifically to meet the high-throughput demands of express pressure pumping, the AVW car wash high pressure pumping system delivers maximum efficiency and reduced maintenance in commercial tunnel operations. Available in single, double, and triple pump configurations, utilizing industry-proven Hydra-Cell (H25, D10, D35) pumps, this versatile pumping system fits both compact and large-scale utility rooms.
Features such as integrated float valves, suction strainers, and precise pressure regulating valves ensure smooth fluid control and protect internal pump components against dry-running and system overpressure.
Equipment details
Specs
Videos
Downloads
| Specification / Parameter | Details & Values |
| Manufacturer | AVW Equipment Co. |
| Equipment Type | High Pressure Pumping Station / Car Wash Pump Station |
| Pump Options | Hydra-Cell Pumps (H25, D10, D35) |
| Configurations | Single, Double, or Triple Pump Units |
| Tank Options | Integrated Gravity-Fed Tank, Tankless (-LT), or Separate Tank (-1111) |
| Frame & Tank Material | Heavy-Duty Stainless Steel Construction |
| Motor Options | 7.5 HP, 15 HP, 20 HP Electric Motors (1800 RPM) |
| Valves & Pressure Control | Integrated Pressure Regulating Valve (500–1000 PSI depending on model) & Jobe Float Valve |
| Protective Features | Belt Guards, Stainless Steel Suction Strainers, Liquid-Filled Pressure Gauges |
