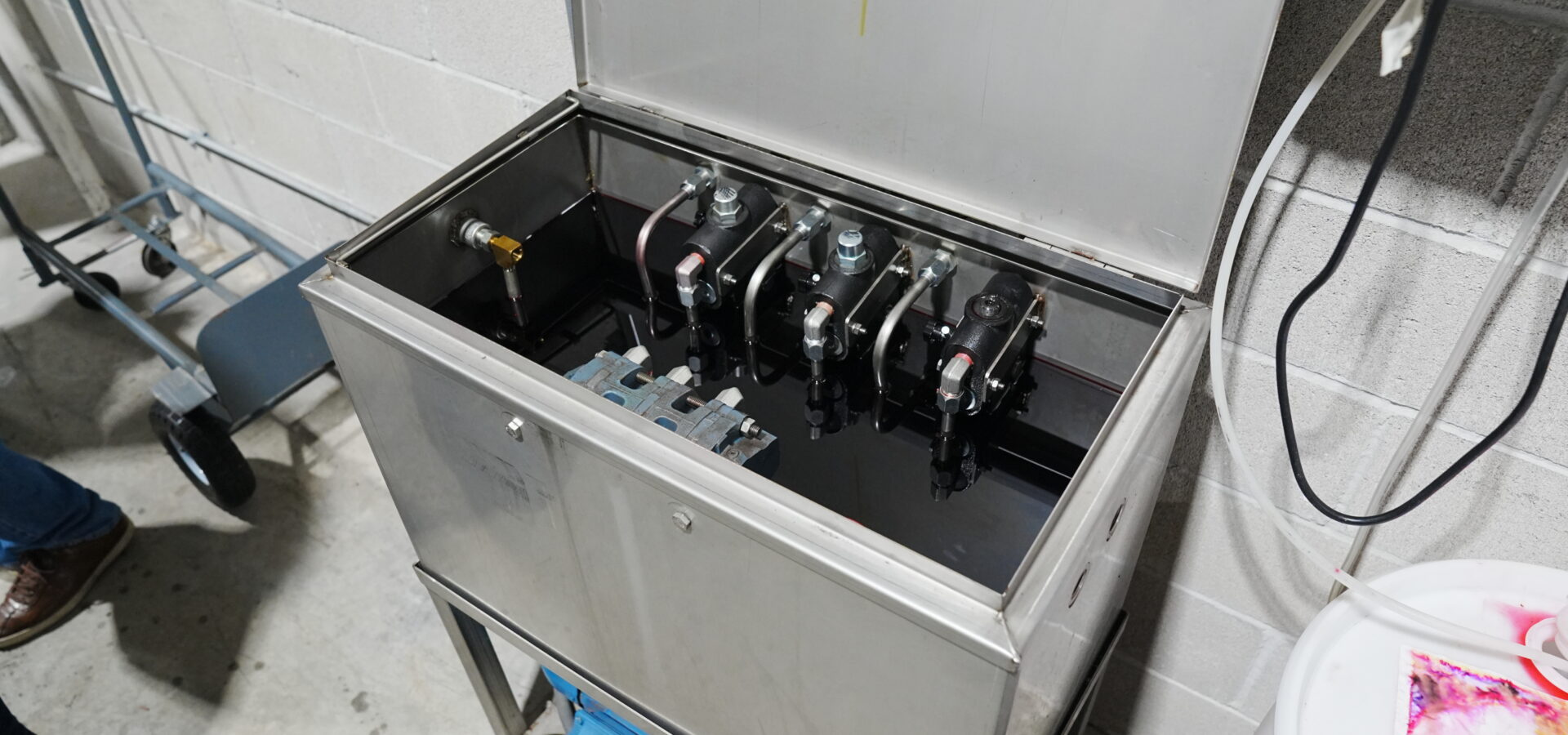

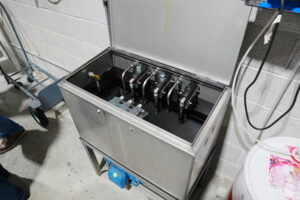

Maintaining consistent hydraulic pressure throughout a high-volume wash tunnel requires a backroom hydraulic power pack designed to perform under continuous load. The AVW hydraulic power unit delivers centralized fluid power to drive key mechanical components across your entire system with uninterrupted stability. Engineered specifically to eliminate the mess and maintenance hazards of fluid loss, this car wash HPU system features an integrated gravity feed tank that houses all adjustable controls directly inside the reservoir—preventing fluid drips or pooling on your backroom floor while maintaining peak fluid delivery.
Built as an adaptable multi-port hydraulic power unit, this tunnel car wash hydraulic station supports configurations from 1 to 7 individual ports to power multiple pieces of equipment simultaneously. Each unit includes a 4-port flow divider (HPU4-F) and precision flow control valve assemblies (HPU4-E) to ensure balanced fluid feed across all connected hydraulic lines, preventing pressure drops during peak operating hours. Constructed entirely from heavy-duty stainless steel, the power pack resists harsh backroom environments, chemical splash, and high humidity, giving operators a long-lasting, clean, and efficient hydraulic core for their wash operation.
Equipment details
Specs
Videos
Downloads
| Specification / Parameter | Details & Values |
| Manufacturer | AVW Equipment Company, Inc. |
| Equipment Type | Central Car Wash Hydraulic Power Unit / HPU System |
| Motor Specification | Electric C-Face Footed Motor, 10 HP, 1800 RPM (EM10-1800-215TC) |
| Pump Type | Parker P16 / GP20 Hydraulic Pump (GP20-P16) |
| Construction Material | Heavy-Duty Stainless Steel Reservoir, Stand, & Lid Assembly (HPU4-A, HPU4-B) |
| Fluid System Design | Gravity Feed Tank with Internal Drip-Free Controls |
| Port Capacity | 1 to 7 Port Configurations Available |

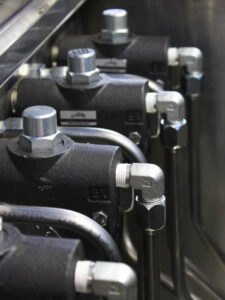

| Flow Management & Control | 4-Port Flow Divider (HPU4-F) & Adjustable Flow Control Valve Assemblies (HPU4-E) |
| Filtration & Monitoring | Suction Hydraulic Filter (SS150) & Integrated Manometer Assembly (HPU-G) |
| Mounting Footprint / Dimensions | 36.33″ Length x 13.00″ Width x 3.50″ Mounting Hole Spacing |
| Application | Tunnel Car Wash Hydraulic Station / Backroom Power Pack |
